2-Year-Replacement-Warranty Class-2 DIM IP-54-IP-Rating Tricolour

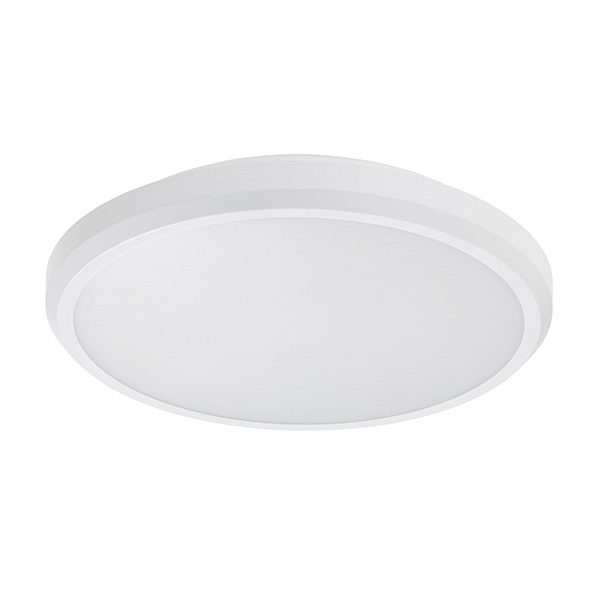

Eclipse II 15W / 18W / 28W Tricolour LED Oyster

Model Number: Please make a selection Categories: ,
Eclipse II is a surface mounted LED ceiling lights has been designed to suit any commercial or residential use. The range is available in three sizes. Tricolour SMD LED light that is encased with a toughened opal acrylic diffuser, providing excellent light distribution.
  • Modern and robust designed ideal for residential and commercial applications
  • Polycarbonate (PC) housing and diffuser
  • Easy connect with swivel lockable vandal-proof cover
  • Provide a uniform light-output using SMD LED technology
  • Switchable colour temperature 3000K, 4000K and 5000K
  • Compatible with Martec® lighting dimmer MTD350VAP and MTD350VAR (sold separately)
Clear
Product Enquiry
Ordering Code
TLEO34515WD | TLEO34518WD | TLEO34528WD
Colour
White
Size (mm)
220mm | 270mm | 320mm
Power Wattage
15W | 18W | 28W
Voltage
220v – 240 50Hz
Material
Polycarbonate housing
Colour temperature
3000k / 4000k / 5000k
Lumens Output
1440lm / 1600lm / 1550lm | 1200lm / 1350lm / 1250lm | 2100lm / 2300lm / 2150lm
IP Rating
IP54
Beam Angle
110°
CRI
Ra>80
Rated Lifetime
25,000 hours @ Ta25°C
Dimmable
Yes
TLEO34515WD 3000K TLEO34515WD 4000K TLEO34515WD 5000K TLEO34518WD 3000K TLEO34518WD 4000K TLEO34518WD 5000K TLEO34528WD 3000K TLEO34528WD 4000K TLEO34528WD 5000K
N100069_MartecSpecs_EclipseII_3_Lores-1Download PDF
Tradetec-Eclipse-II-Installation-ManualDownload PDF
