6-Year-Warranty AC-MOTO-R Summer-&-Winter-Reverse-Function Indoor-Cover-Outdoor-Use

Discovery II 48″/ 52″ / 56″ AC Ceiling Fan

Model Number: Please make a selection Categories: , , , , , , ,
ABS Versatility. The Discovery ll ceiling fan is a sleek and modern ceiling fan with a powerful yet efficient 65W motor. Discovery features durable ABS blades and is fully reversible for summer and winter use.
  • Available in 1220mm (48"), 1320mm (52") and 1420mm (56")
  • Powerful and efficient 65W AC motor
  • Slimline designed ideal for indoor and outdoor covered application
  • ABS body and canopy with 4 ABS blades
  • Fully reversible for summer and winter mode
  • Compatible with Martec® ceiling fan remote control MPREMS, MPLCDS and MPWIFI (sold separately)
Clear
Product Enquiry
Ordering Code
MDF124W | MDF124M | MDF134W | MDF134M | MDF144W | MDF144M
Colour
White Satin | Matt Black

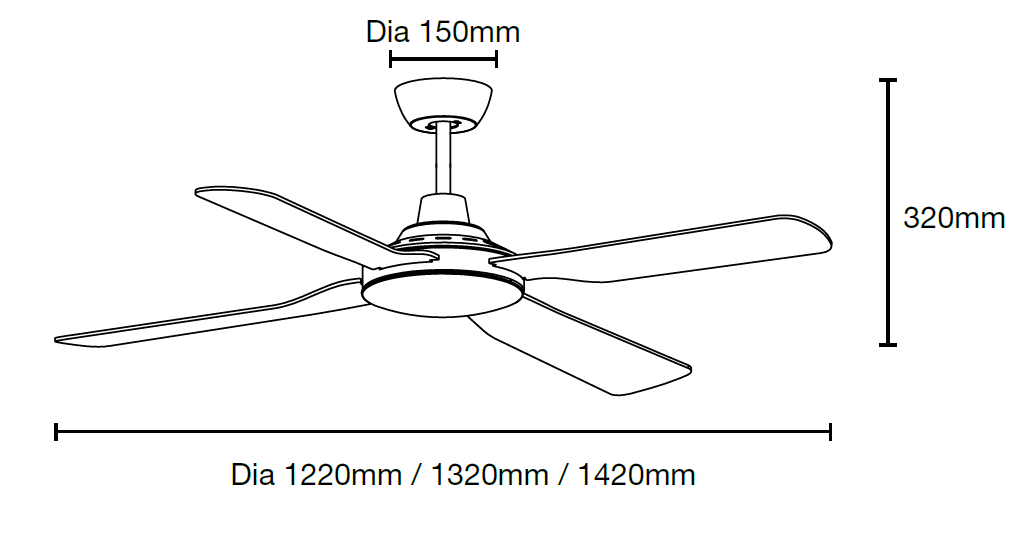

Size (mm)
1220mm (48”) | 1320mm (52") | 1420mm (56")
Air movement m3/hr
11,835m³/hr | 13,4500m³/hr | 15,260m³/hr
Motor Type
AC
Power Wattage
65W
Voltage
220-240V 50Hz
Number of blades
4
Blade Pitch
13° 1220mm / 1320mm | 10° 1420mm
Hangsure canopy
Maximum 15°
Controller Type
3 speed wall controller
Martec-Cooling_Discovery-II-Fan-Only-Spec-SheetDownload PDF
Discovery-II-AC-Installaton-Guide_FinalDownload PDF
Warranty Period
6* Year In-Home Warranty - *3 year In-Home + additional 3 Year Replacement Warranty on the motor only.
Warranty-Statement_CoolingDownload PDF
